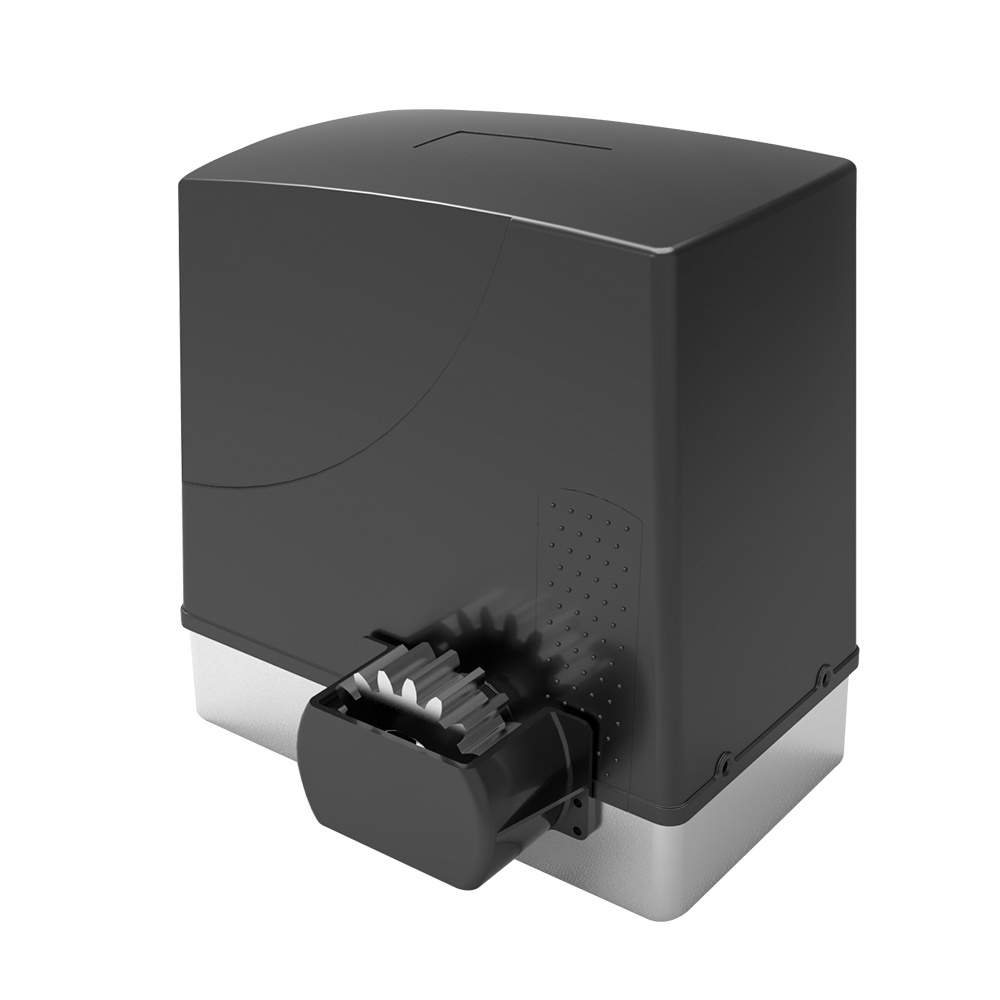

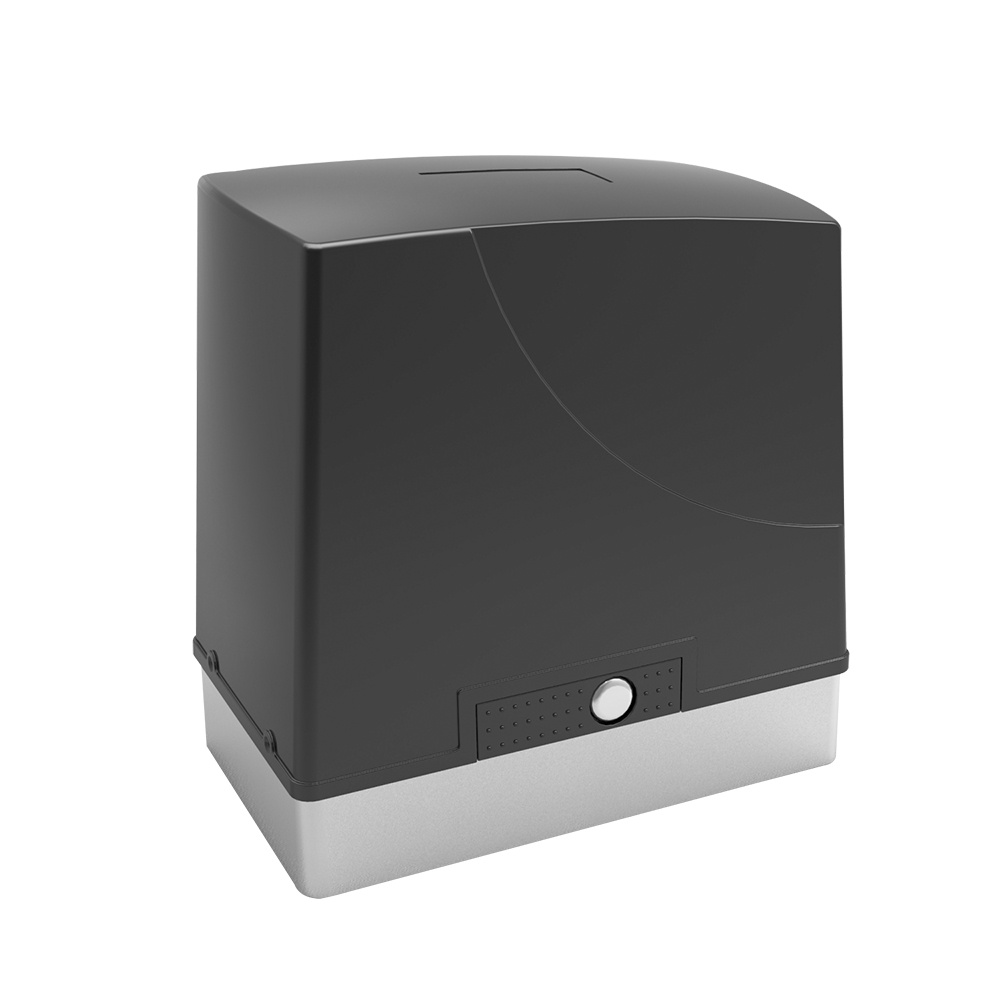

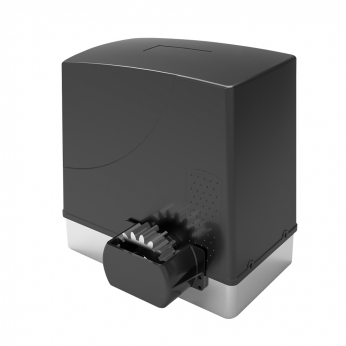

DKC800Y
Features：
New design AC motor.
Beautiful appearance, built-in control board;Soft start and soft stop.
Auto-reverse when obstruction, force can be adjust.
Auto-close function and pedestrian mode.
Manual release for emergency purposes.
Wiring terminals for alarm lamp, infrared photocell, etc.
Technical data
| Modle | DKC800Y |
| Power supply | 110V or 220V |
| Motor power | 300W |
| Output toque | 18N.m |
| Opening speed | 12m/min |
| Output teeth | 19T |
| Limit switch | Spring or Magnetic |
| Max. gate weight | ≤800kg |
| Frequency | 433.92Mhz |
